Original price was: ₹450,000.00.₹413,000.00Current price is: ₹413,000.00.
Highlights:
WORKTABLE SIZE 20″ X 25″ can be taylor made on request
Hydraulic Envelope Die Cutting Press Machine, widely used for cutting nonmetal materials used in various industries by die cutter, exporters from India Manufacturers Sikandar Machines
Contact Us
Products on backorder
ships in 10-35 business days
This is a Hydraulic Envelope Die Cutting Press Machine. Most rigid machine to undertake full Load. Useful for manufacture of Envelopes, Inland letters, cards, Die Cutting, non woven Fabric die Cutting, Leather Cutting, rubber, plastic packing, textile, chemical fibre, Patch Cutting, Envelope Punching, paper punching etc.
Cutting Die setting mechanism very simple,
High speed travel up to top of die and cutting at high pressure when in contact with die cutter, Upper moving table can be set at any position at top and at bottom electronically.
Operation with electric push button for safety.
Easy setting of machine die.Cutting force is more than sufficient required for all above jobs.

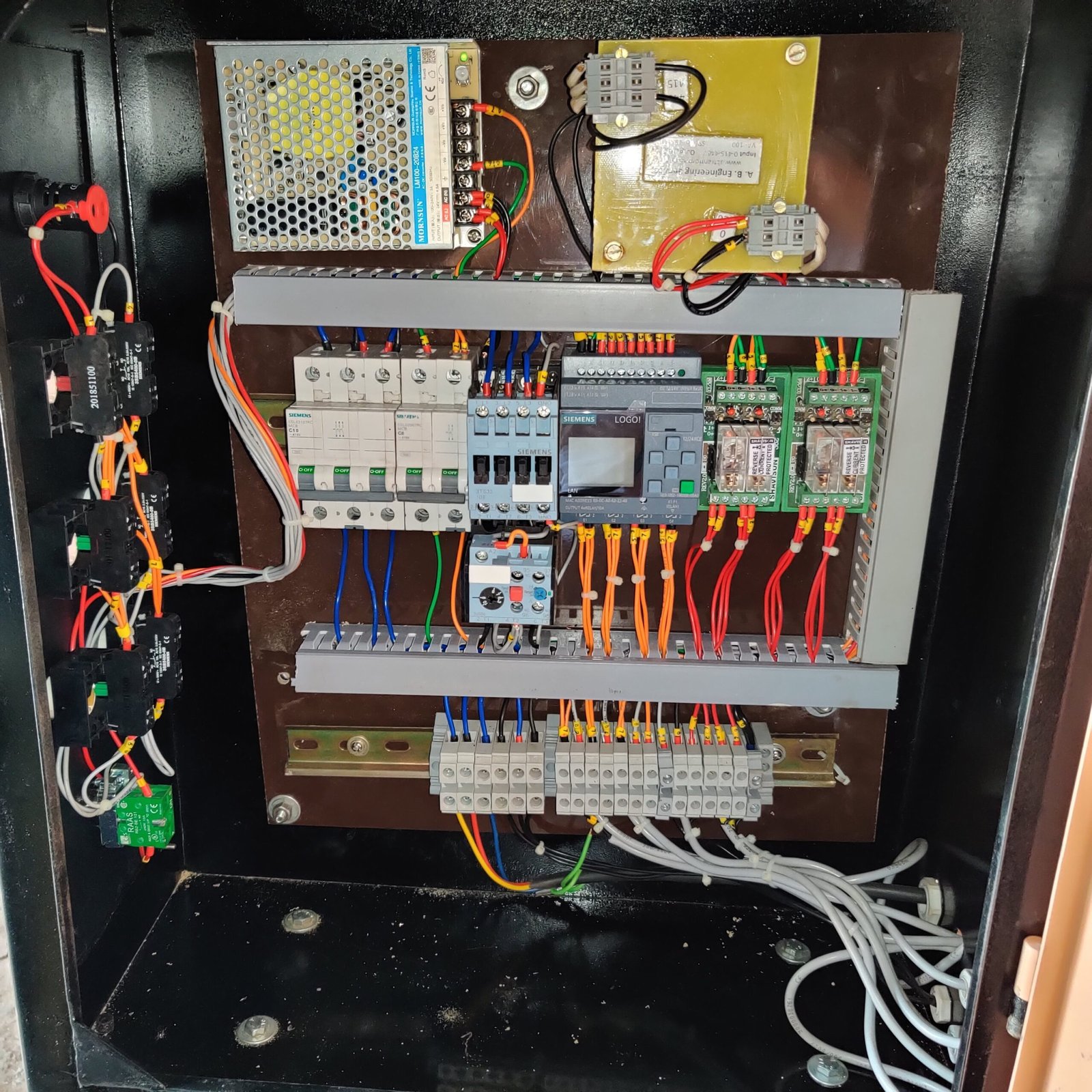

Day light area is adjustable, It is fitted with PLC control system for operation.
Table In and table out is Hydraulic
Almost negligible maintenance than required in mechanical machines.
MORE OVER EMERGENCY STOP AND AUTOMATIC REVERSE OF CLAMP PLATE PROVIDED
Specifications:
| MAXIMUM CUTTING FORCE | 11.5 TONS |
| STROKE | 150 MM |
| RANGE BETWEEN WORKING TABLES | MORE THAN 200 MM |
| WORKTABLE SIZE | 20″ X 25″ |
| DRIVE TYPE | HYDRAULIC |
| MOTOR as per Load | 3 or 5 HP THREE PHASE 440V/50HZ |
