Book Stitching Machine Parts

Description

PAGE UNDER CONSTRUCTION

Book Stitching Machine Parts PAGE UNDER CONSTRUCTION

1. CLINCHER BOX BACK-PLATE
2. CLINCHER BOX FRONT-PLATE
3. CLINCHER BOX COMPLETE
4. CLINCHER LEVER WITH BOLT
5. CLINCHER SET
6. CLINCHER LIFTERS
7. STIRRUPS FOR DRIVER 20 SWG
7a. STIRRUPS FOR DRIVER 22-24 SWG
8. CUTTING KNIFE
9. CUTTING TUBE
10. CLINCHER CAM
11. CLUTCH SPRING
12. CLUTCH BOLT
13. CLUTCH PAWL

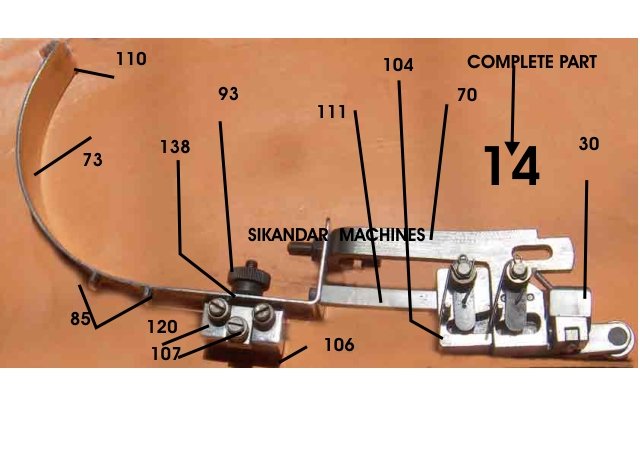

 14. COMPLETE SET AS PER DIAGRAM WIRE FEEDER

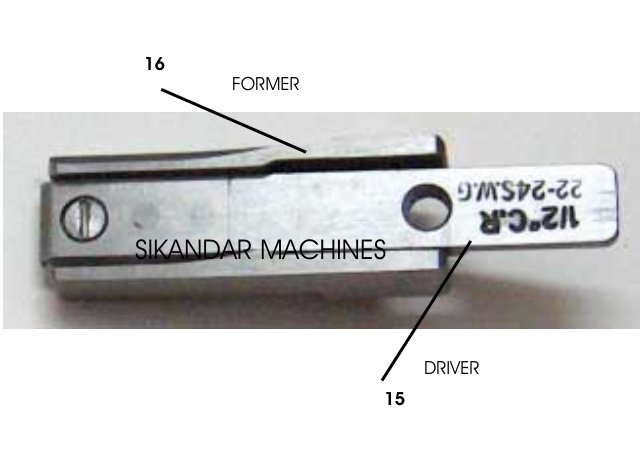

15. DRIVER 20-26 SWG
16. FORMER 20-26 SWG
17. DRIVER HEAD
18. FEED LEVER
19. PULLEY DIAMETER 12″
20. FEEDER BLOCK
22. COVER DOOR PIN HINGE PIN
23. COVER PLATE
24. COVER DOOR PLATE
25. LOCKING SCREW
26. LOOP BAR – 20 TO 26 SWG
27. PEDDLE
28. PHILEDUS NUT
29. REBOUND PAUL
30. CUT OF LINK WITH ROLLER AND KNIFE CUTTER COMPLETE
31. PART OF COMPLETE SET OF 14 NUMBER CUTTING KNIFE
32. SCREW FOR LOOP BAR SPRING
33. SPRING FEEDER
34. SPRING FOR SAFETY GUARD
35. SPRING FOR STAPPLE SUPPORT
36. SPRING FOR PEDDLE RETURN
37. SPRING FOR CLINCHER RAM
38. SPRING FOR CLUTCH BOLT
39. SPRING WIRE HOLDER
40. SPRING LOOP BAR
41. FEED LEVER RETURN SPRING
42. SPRINGS ALL SEVEN PIECES AS PER IMAGE
43. CAM
44. ROLLER FOR FORMER
45. LOOP BAR SPRING SCREW
46. FEEDER ROLLER PIN AND ROLLER
47. CATCH FOR DOOR
49. STOP FOR FEED LEVER WITH 2 NUTS
50. LEVER ROLLER FOR SLIDING FEED
51. WIRE GUIDE
52. LOCKING BOLT SLIDING FEED PLATE
53. END PLATE ON WHEEL
54. NUT OF END PLATE
55. CLINCHER LEVER BOLT
56. SPRING BACK ROD INSIDE BODY
57. WHEEL AND SCREW FOR ANVIL BAR
58. FEEDER BACK PLATE ONLY
59. ROLLER FOR DRIVER HEAD
60. TABLE BACK GAUGE
61. ROLLER OF CUT OF LINK
62. TABLE
63. CHISEL POINT OF FEED LEVER
64. COVER PLATE
68.  SAFETY GUARD SCREEN
69.  SAFETY GUARD WITH COVER   20
70.   SLIDING FEED PLATE ONLY OUT OF COMPLETE PART 14
73.   WIRE GUIDE SPRING
85.   LOWER STRIP OF WIRE GUIDE
86. CLAMP PLATE FOR TUBE CUTTER
93.  NURRING FOR WIRE STRAIGHTNER
104. FEEDER BLOCK FULL
106. RECTANGULAR BLOCK OF WIRE GUIDE
107. FLAT PIECE WITH THREAD FOR WIRE GUIDE
110. STIRRUP WIRE GUIDE SPRING UPPER
111. GUIDE BAR FOR FEEDER
112. LEVER ROLLER FOR SLIDING FEED PLATE
120. WIRE GUIDE SPRING ROLLER
138. SPRING FOR WIRE GUIDE SPRING
143. FIX PIN IN SLIDING FEED PLATE
145. FEED ROLLER
