Automatic Notebook Making Machine

Description

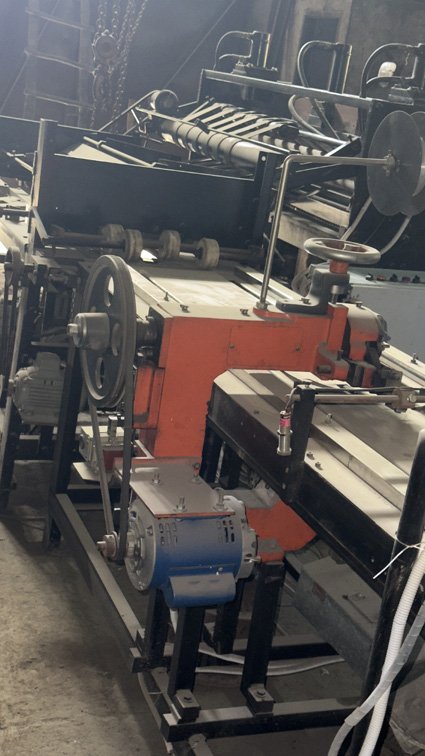

Automatic Notebook Making Machine offered by Sikandar Machines is a very useful machine to make notebooks, with this machine Stitching, Folding & back squaring is done automatically. .

SOME FEATURES :
Automatic Notebook Making Machine
Suitable for One Meter Long Notebook of about 192 pages 8 mm thick

     VARIOUS OPTIONS TO SELECT ON HMI DISPLAY

• Any number of stitches by wire stitching machine from one to twelve
• Any gap between any two pins at any desired points
• Each stitch pin is controlled by servo motor to stitch at correct position.
• Automatic one folding at center
• Automatic edge squaring

NO AIR COMPRESSURE REQUIRED
3 AC drives with motors are used, 1 Servo Motor, 1 Stepper Motor, 1 motor 0,5 HP single phase for wire stitching machine  and one 3 HP 3 Phase for Hydraulic power pack

Notebooks Making Machines which are used in making copies for students are all manufactured by us. Some of the main machines which are used are named as
1. Edge Squaring Machine
2. Book Stitching Machine
3. Paper Cutting Machine
4. Corner Cutting Machine
5. Notebook Folding Machine
6. Shrink Wraping Machine (optional)
7. Automatic Notebook Making Machine suitable for stitching folding squaring

The above machines are independently used to make a exercise notebook,
However a Automatic model is also available to make this exercise notebook.
With this Automatic machine the Notebook paper are Stitched automatically and then folded and Edge squared. This machine is three in one (Stitching, Folding & Edge squaring all in one machine)

The operating manuals & electric drawings of notebook making machines are supplied to the customers.
